Data Sheet
All specifications are based on manufacturer data. Contact us for the full technical datasheet.

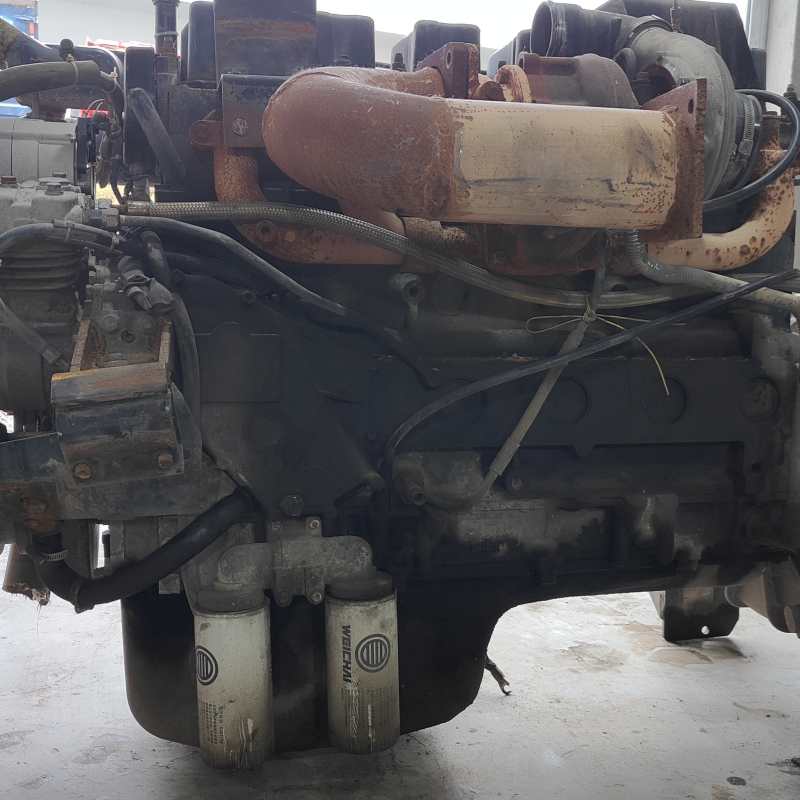

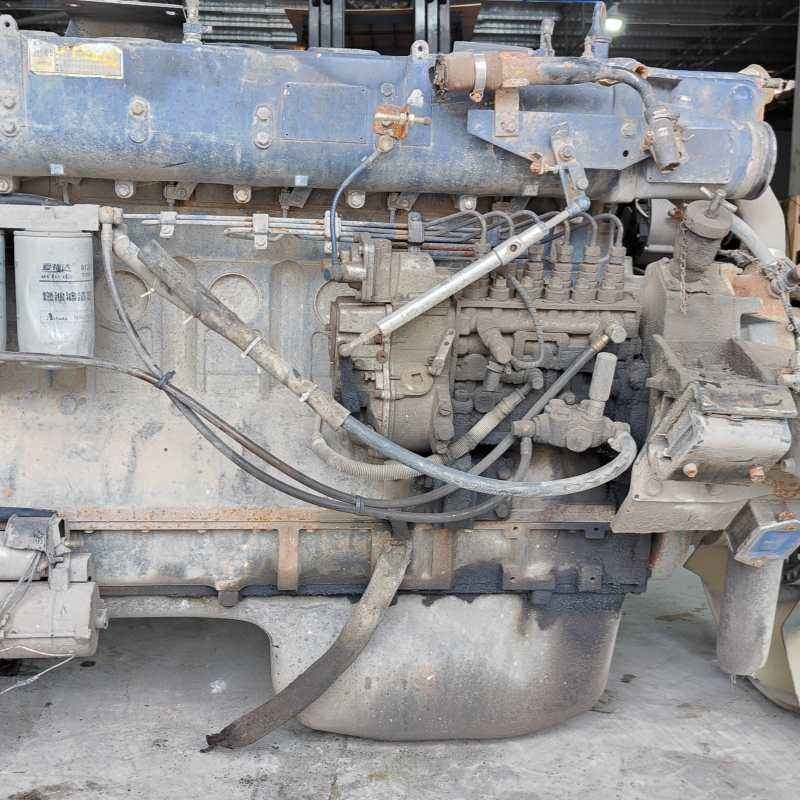

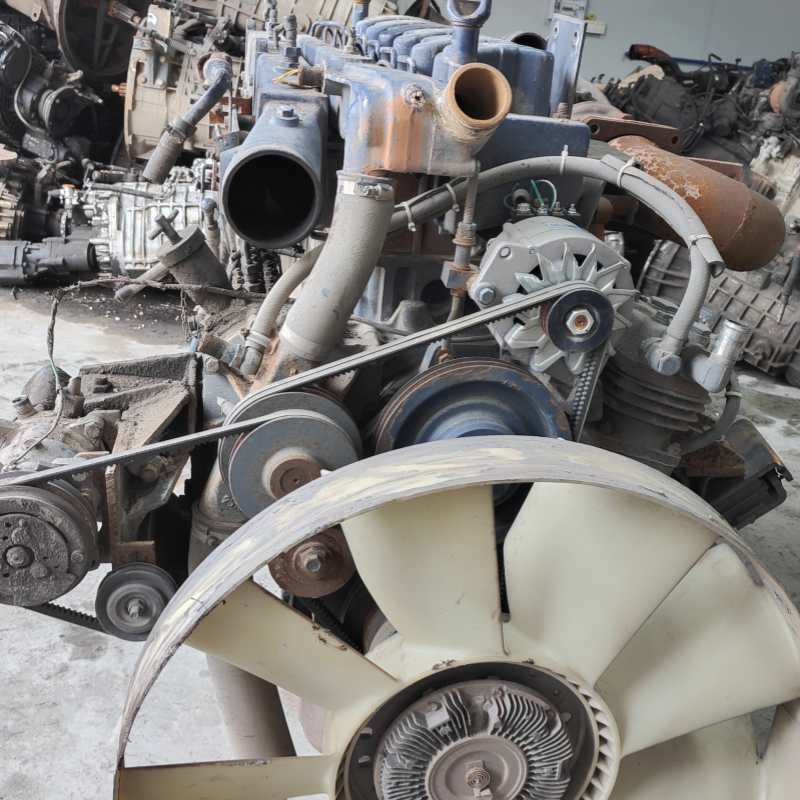

Model: WEICHAI WP12.380
| Brand | WEICHAI |
| Model | WEICHAI WP12.380 |
| Fuel Type | Diesel |
| Cylinders | 6 |
| Displacement | 11.596 |
| Power Output (kW) | 280 kW |
| Horsepower (HP) | 380 HP |
| Emission Standard | Euro 3 |
Specifications may vary by production year and configuration. Contact us to confirm exact details for your unit.
Overview
| Manufacturer’s Guide price: | Consult local dealers Manufacturer’s guide price | Consult local dealers Local lowest quote: | |
| Engine parameter Engine model: |
WP12.380 | Engine brand: | for Weichai |
| Engine series: | Blue engine WP12 series | Engine manufacturer: | for Weichai Power Co., Ltd. |
| Application: | Truck | Intake form: | supercharged, intercooled built-in EGR |
| cylinder number: | 6 cylinders | Fuel type: | Diesel |
| power: | |||
| rated speed: | 2200rpm | Max horsepower: | 380 HP |
| Max torque: | 1600N.m | Maximum torque speed: | 1300-1400rpm |
| Full load minimum fuel consumption rate: | 185g/kW.h | Engine form: | water-cooled, four-stroke, with exhaust brake, direct injection, supercharged and intercooled |
| engine Net weight: | 1050kg | Engine size: | 1611×817×1094mm |
| Compression ratio: | 17:1 | One meter away noise: | 97dB |
| cylinder diameter x stroke: | 126X155mm | Valve number per cylinder: | 6 |
