Data Sheet
All specifications are based on manufacturer data. Contact us for the full technical datasheet.

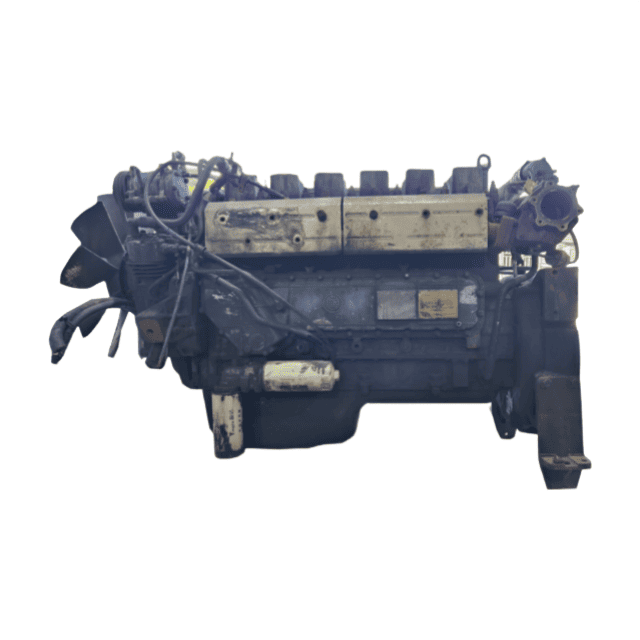

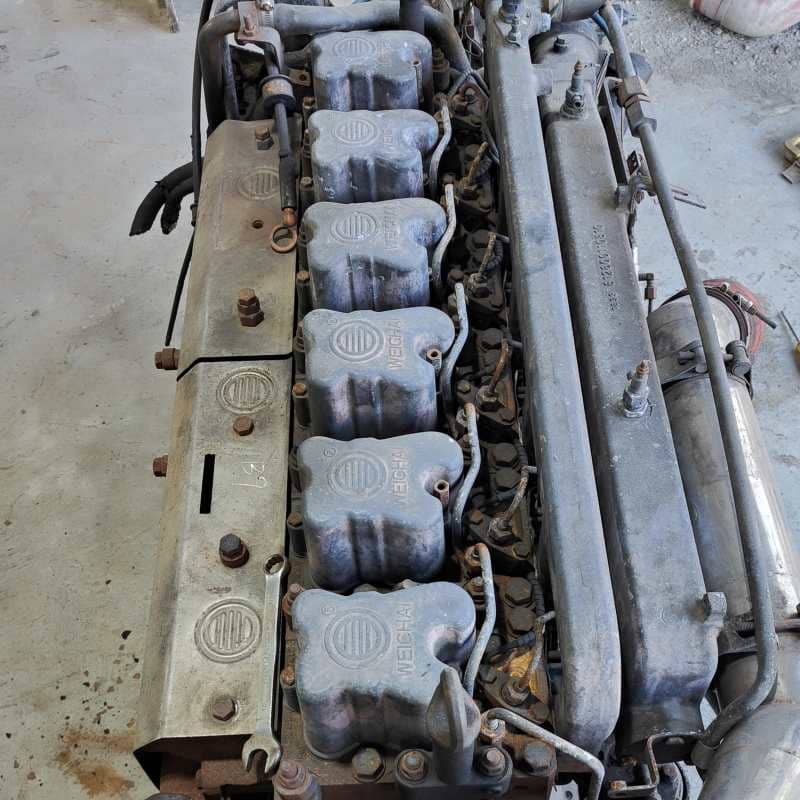

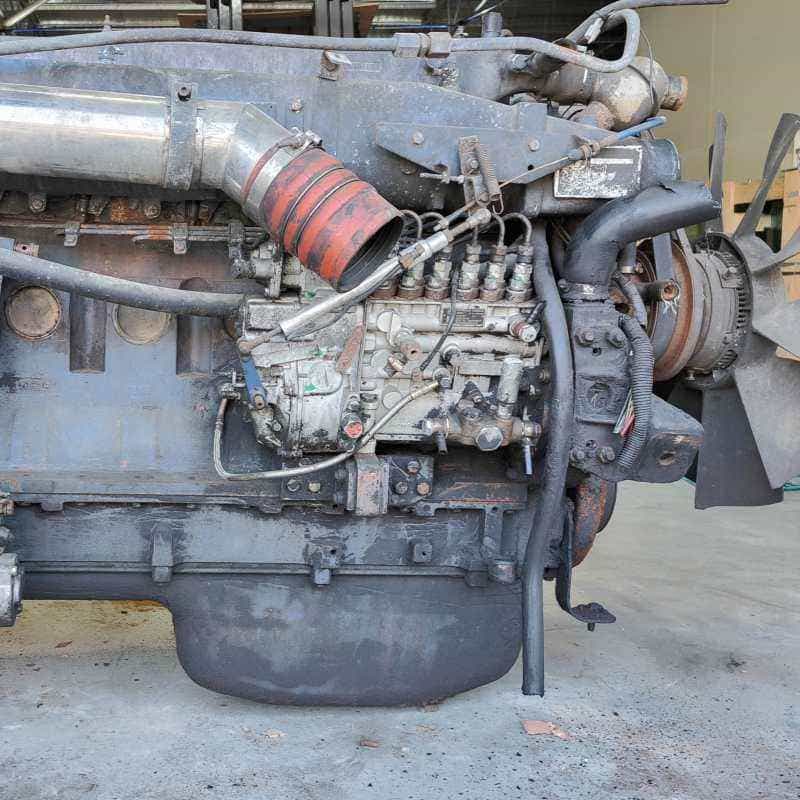

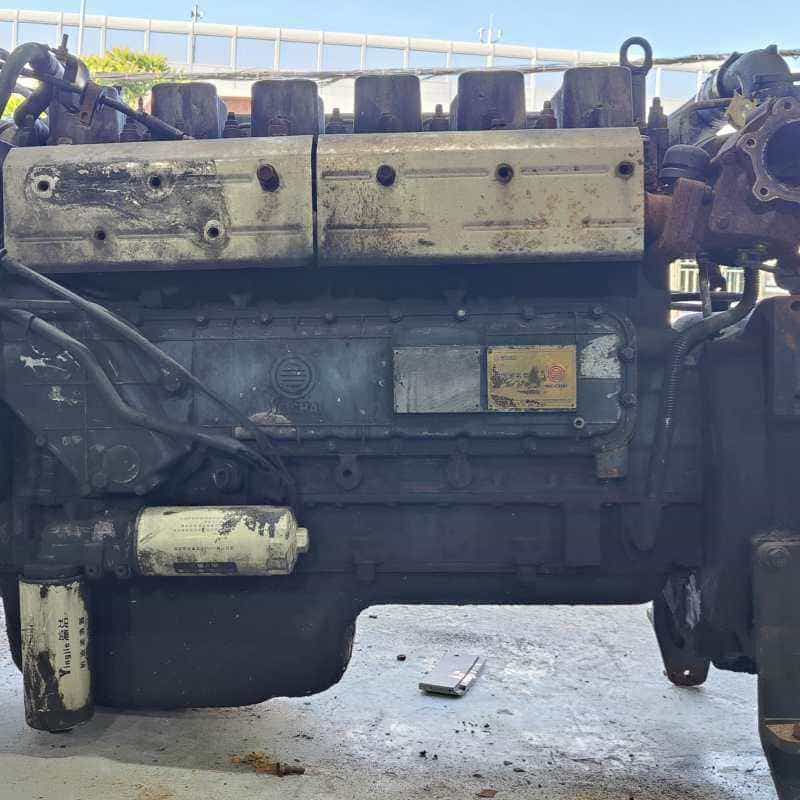

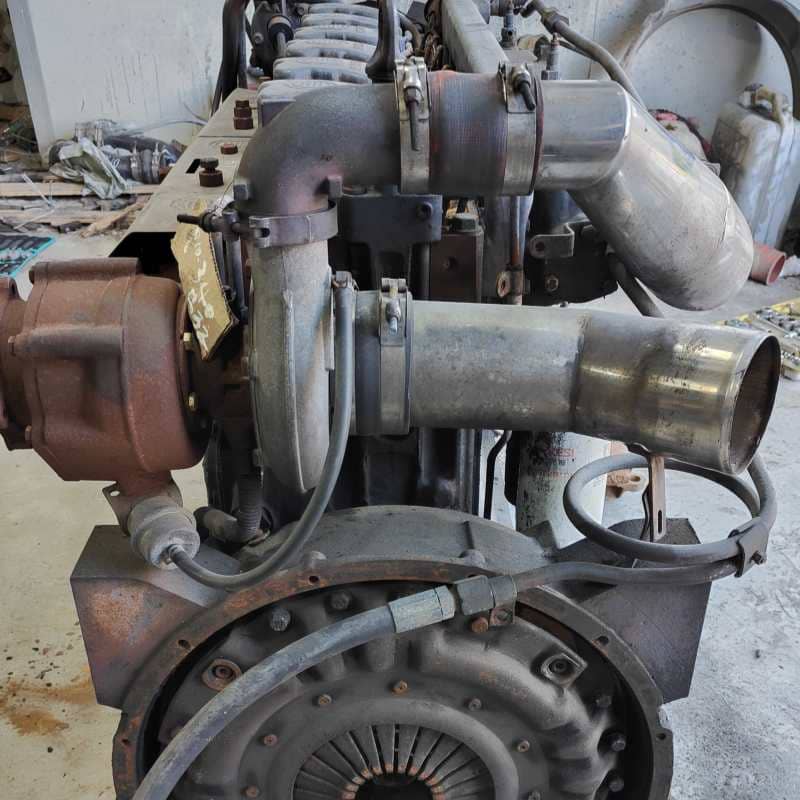

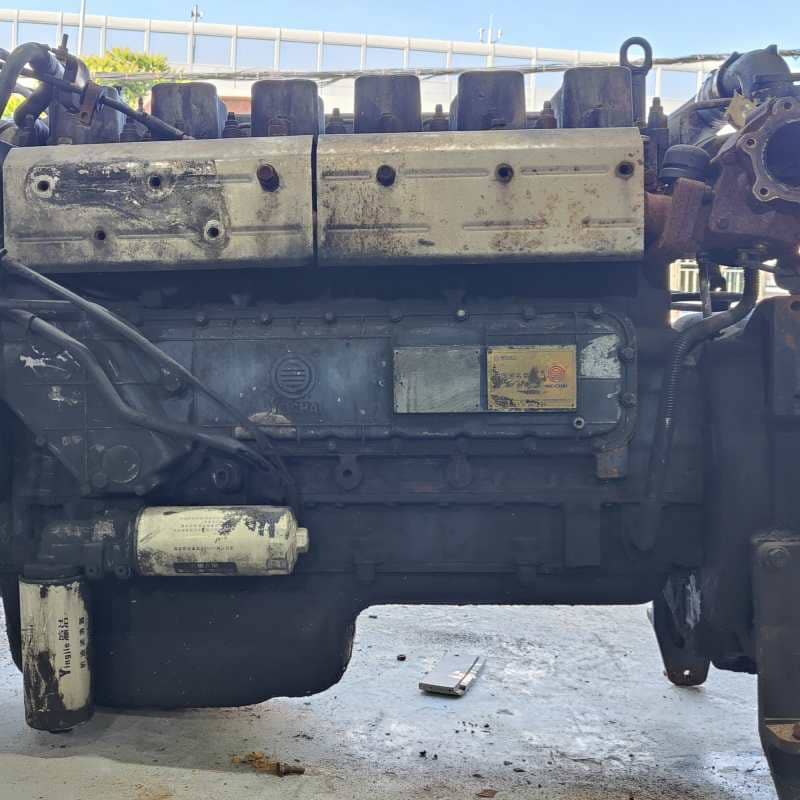

Model: Weichai Wp10 336Hp 340Hp 380Hp
| Brand | WEICHAI |
| Model | Weichai Wp10 336Hp 340Hp 380Hp |
| Fuel Type | Diesel |
| Cylinders | 6 |
| Displacement | 9.726 L |
| Power Output (kW) | 220 kW |
| Horsepower (HP) | 336 HP |
| Emission Standard | Euro 3 |
Specifications may vary by production year and configuration. Contact us to confirm exact details for your unit.
Overview
| Maximum Power | 280 kW |
| Minimum Power | 220 kW |
| Maximum Torque / Speed | 1650/(1200-1600) N·m / r/min |
| Emissions | Euro II/V |
| Cylinder Number | 6 |
| Valve Number | 4 |
| Bore | 126 mm |
| Stroke | 130 mm |
| Displacement | 9.726 L |

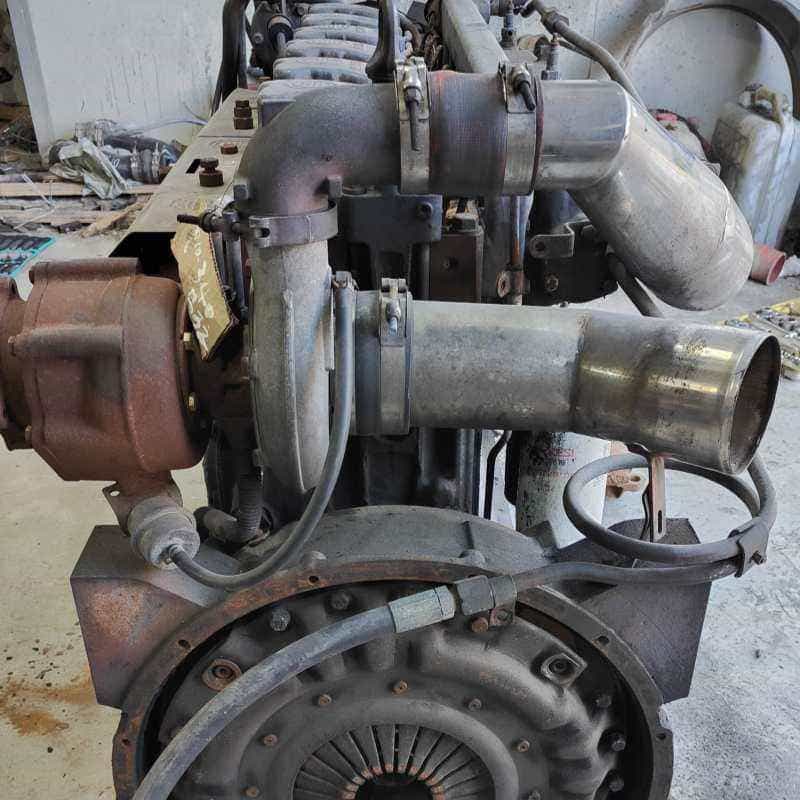

| Aspiration | Turbocharged and intercooled |
| Compression Ratio | 17:1 |
| Combustion System | Electronically controlled high-pressure common-rail |
| Length | 1525 mm |
| Width | 730 mm |
| Height | 1063 mm |
| Weight – Net Dry (Basic Operating Engine Without Optional Attachments) | 875 kg |
